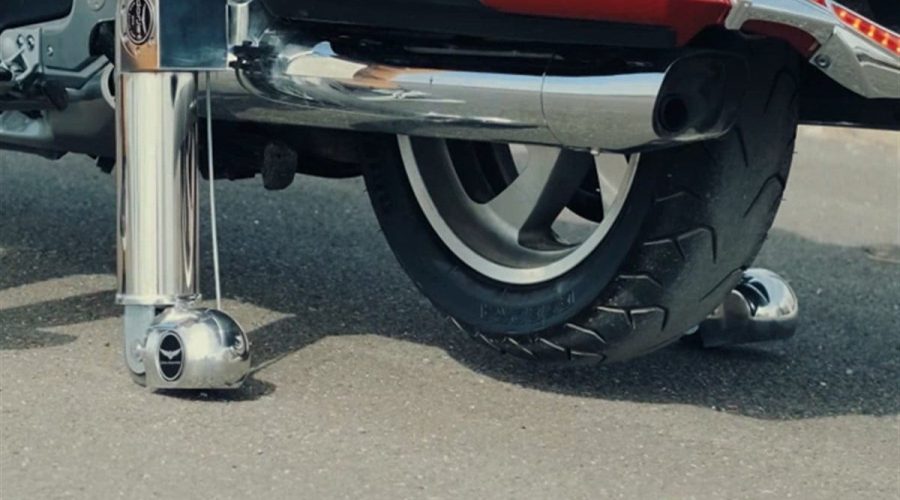

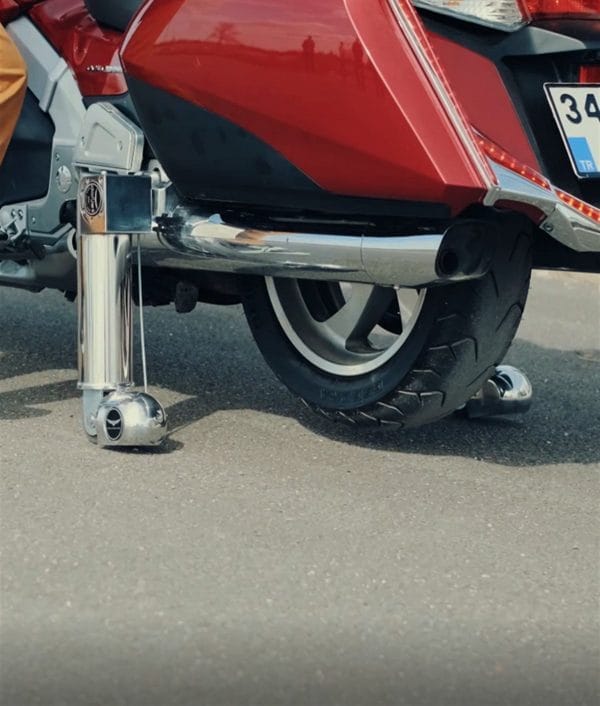

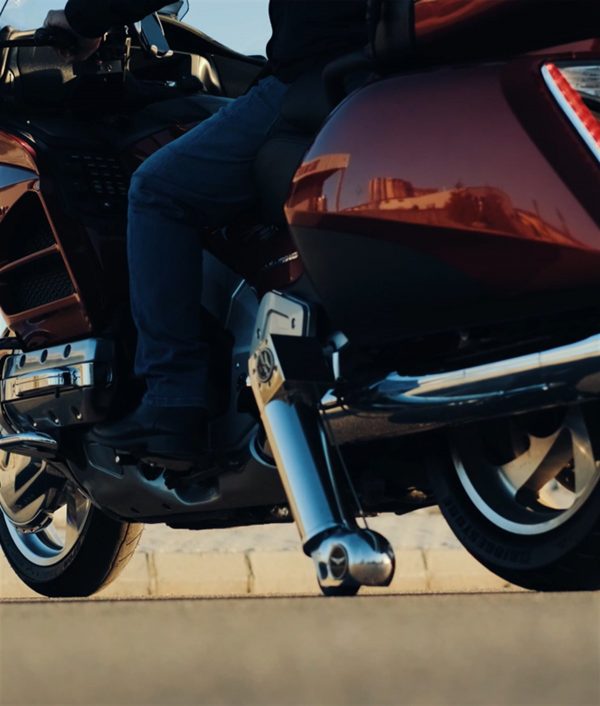

When the speed of the motorcycle drops below 30 km/h, the green light turns on to indicate that it is ready to lower the landing gear to the ground. If you want the landing gear to land, you can press and release the green button (pulse button) to make the landing gear land. You can turn the landing gear to the opposite direction by pressing the green button. When you reach 10 km/h after moving, the landing gear lifts up automatically. You can lift it earlier by pressing the green button if you want.

With the angle button that moves in both directions (right and left) (pulse button), you can bring the motorcycle to the balance when it is stationary or in motion. If the motorcycle is tilted to the left, press the right button. if it is tilted to the right, press the left button. Each press to the left button pushes the horizontal gear towards the ground and pulls the other gear upwards and the motorcycle is tilted 1 degree up to 8 degrees with each press in the opposite direction.

Red button and red light;

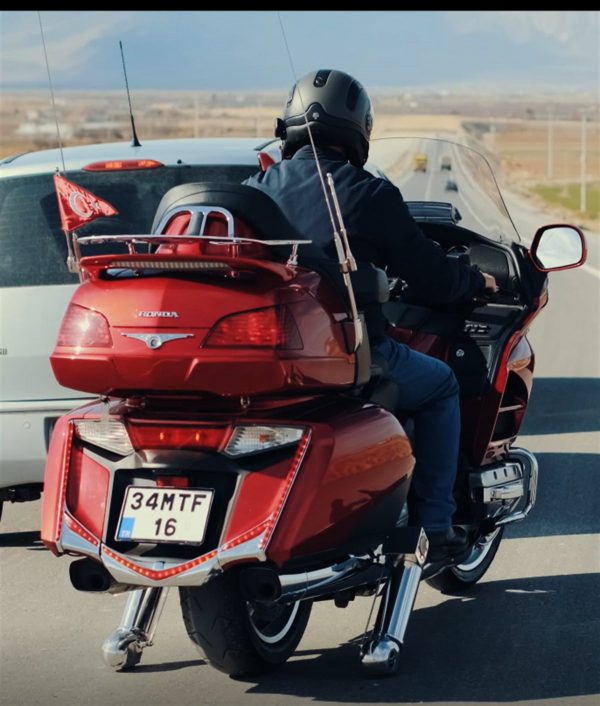

If you press the red button (pulse button) with the landing gear down, the red light will turn on indicating that you are in heavy traffic mode and will provide a more balanced drive. It will not lift landing gear up until the motorcycle reaches 30 km/h. But if you want to lift it earlier, pressing the green button will raise the landing gear and at the same time, heavy traffic mode will be cancelled. The reason for the heavy traffic mode is to prevent you from constantly lowering and lifting the landing gear during stop-and-go, and not to automatically raise the landing gear above 10 km/h during sudden accelerations in heavy traffic. Also, since you are a 4-wheelers in heavy traffic, it is designed to allow you to pass between vehicles comfortably.

The left is the blue button that you control with your index finger

The park button is the blue button that you control with your left index finger. When we press and release the blue button, the rear wheel of the motorcycle is lift off from the ground and the lifting capacity of the landing gear is up to 560 kg including the driver. Even when you are on the motorcycle, the landing gear will lift the bike in the air and allow you to take it to the stand. If your load is more than 560 kg, it will automatically detect the weight and stop. When you press the blue button again, it is designed to pull the landing gear back 40 degrees so that the bike gets on the stand and at the same time, the motorcyle does not collapse if it is accidentally lowered from the stand. While on the stand, you can press the green button to pull the landing gear up.

To lower the motorcycle from the stand again, if the landing gear is up, press the green button to lower the landing gear to the ground, then press the blue button to bring it to the park position and by pushing the bike forward, you can lift the stand and press the blue button again to lower the rear Wheel to the ground at a slow speed and make it ready for travel.

RED LIGHT

Kırmızı ışık kontağı açtığınızda motorun şarja başlaması için 5 saniye kadar kırmızı ışık hızlı yanıp sönerek iniş takımlarını çalışmaya hazır olmadığını gösterir.  5 saniye sonra sönerek motorun şarja başladığını gösterir.

Ayrıca yoğun trafik butonuna basılmış ise, kırmızı ışık yoğun trafik modunda olduğunu göstermek için kırmızı ışık sürekli yanar ve 30 km/h hıza ulaşılınca iniş takımları otomatik olarak yukarı kalkar ve kırmızı ışık söner. Ayrıca motoru parka alırken ve parktan geri biniş pozisyonuna alırken kırmızı ışık park işlemi bitene kadar sürekli yanar.

YEŞİL IŞIK

If the green light is below 30 km/h, it stays on steadily. If the landing gear is down, the green light will flash rapidly to indicate that the landing gear is down. If the motorcycle is in the park position, the green light will flash intermittently.

GREEN AND RED LIGHT COMBINATION

This function can only be used by authorized agencies. Authorized agency keeps the red button pressed for 10 seconds and the green and red lights flash at the same time, indicating that it is in the setting mode. It connects via bluetooth from mobile phone by entering the password.( If there is no operation for 60 seconds, the program exits, each operation extends the time by 60 seconds.) It is used to adjust the landing gear up position, the ground position, and the landing gear position when parked. If the one of the landing gear touches the ground twice before the other one, it accelerates the late landing gear and automatically corrects it in 4-5 moves until it is equal to the ground, and automatically adjusts the speed of the landing gear.

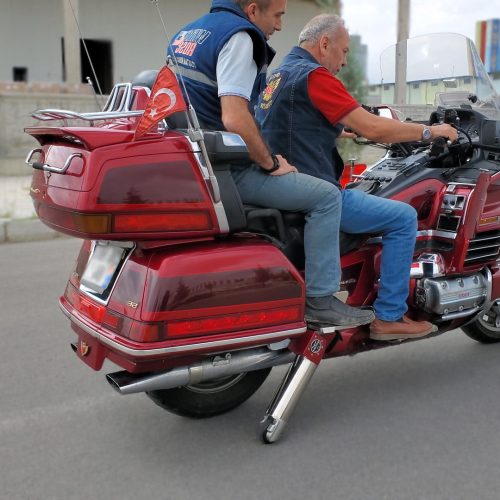

When you get off the motorcycle, the landing gear will loosen as the suspensions will lift the bike up. In other words, your motorcycle will not tilt over, but it will shake. Thanks to the automatic tightening function; The landing gear detects the passenger getting off the motorcycle and makes the motorcycle stand more firmly. When the driver gets off, auto-tensioner function automatically detects it again and pushes the landing gear to the ground a little more, allows the motorcycle to more stable. It is designed to hold the motorcycle tightly when getting back on it. Also, You can make the morcycle more stable by pressing the red button.
