DORJET HARLEY DAVIDSON ELECTRA GLIDE LANDING GEARS

Harley Davidson Electra Glide landing gears are developed specifically for Electra Glide motorcycles. They are also known as automatic balancing and support systems. With automatic motors operating on both sides of the rear wheel, the weight of the motorcycle is balanced, preventing it from tipping over. Whether used manually or automatically, it is a product that enhances your riding experience. Due to the weight of the Harley Davidson Electra Glide, many users struggle to keep the motorcycle balanced at traffic lights, leading to tipping over. Our Dorjet Landing Gears come into play here, increasing both your safety and comfort.

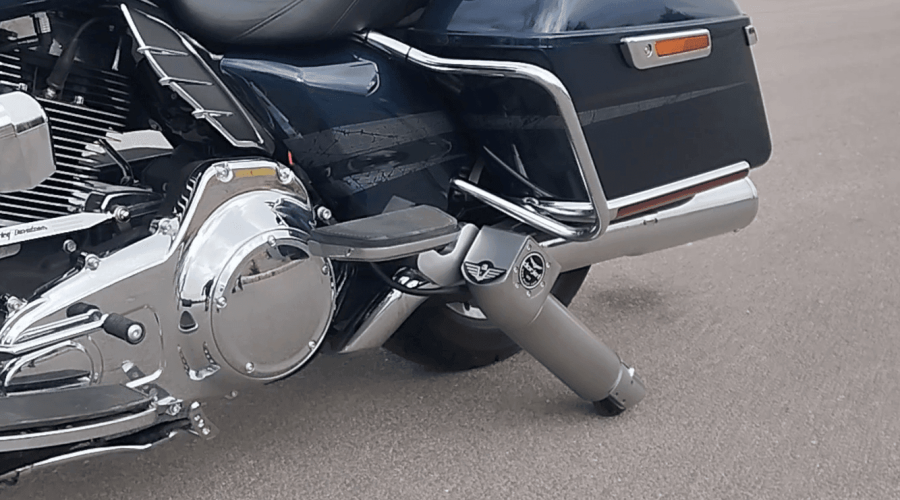

Screenshot_5

Strong aluminum body

Shock absorbing special rubber system

Steel engine protection

BALANCE MODE

You can balance the motorcycle while standing still or in motion with the balance button.

HEAVY TRAFFIC

When you enter heavy traffic with the landing gear down, you can adjust the position of your foot with this mode.

PARK MODE

The landing gear will allow you to lift the motorcycle off the ground and onto the stand even while you're on the motorcycle.

Electra Glide Landing Gears

More

In this way, when you lower the landing gear on the truck tire track in places where there are usually traffic lights, one of the landing gear lands on the normal ground while the other descends on the truck track, ensuring that the motorcycle stays in balance. In addition, with the angle button according to the slope of the road, it can keep the bike on the balance by pushing one of the gear to the ground and pulling the other up.

Comfortable Ride

Passenger Boarding Convenience

It is designed to easily balance two persons without the need to touch the ground while the passenger gets on, eliminating the need to say "I'm getting on" or "I'm getting off" and preventing accidents caused by the passenger.

One of the very important features is that the Dorjet landing gear lands on the same line with the rear tire when it lands. For example, when the landing gear is on the ground, when passing through a narrow speed bumb, the landing gear made by our competitors is too far ahead of the rear wheel, so it will suspend the motorcycle and cause the rear wheel to idle, or it will cause the possibility of damaging the landing gear by overloading the landing gear. This is not a problem as the DORJET landing gear is in line.

Easy Park

DORJET landing gear can be lifted and lowered onto the stand by a 13-year-old child.

Comfortable Driving

Enables women to ride motorcycles.

Comfortable Ride

You don't have to lift it onto a table every time you stop.

3
1
2
4
When the speed of the motorcycle drops below 30 km/h, the green light turns on to indicate that it is ready to lower the landing gear to the ground. If you want the landing gear to land, you can press and release the green button (pulse button) to make the landing gear land. You can turn the landing gear to the opposite direction by pressing the green button. When you reach 10 km/h after moving, the landing gear lifts up automatically. You can lift it earlier by pressing the green button if you want.
With the angle button that moves in both directions (right and left) (pulse button), you can bring the motorcycle to the balance when it is stationary or in motion. If the motorcycle is tilted to the left, press the right button. if it is tilted to the right, press the left button. Each press to the left button pushes the horizontal gear towards the ground and pulls the other gear upwards and the motorcycle is tilted 1 degree up to 8 degrees with each press in the opposite direction.
Red button and red light;If you press the red button (pulse button) with the landing gear down, the red light will turn on indicating that you are in heavy traffic mode and will provide a more balanced drive. It will not lift landing gear up until the motorcycle reaches 30 km/h. But if you want to lift it earlier, pressing the green button will raise the landing gear and at the same time, heavy traffic mode will be cancelled. The reason for the heavy traffic mode is to prevent you from constantly lowering and lifting the landing gear during stop-and-go, and not to automatically raise the landing gear above 10 km/h during sudden accelerations in heavy traffic. Also, since you are a 4-wheelers in heavy traffic, it is designed to allow you to pass between vehicles comfortably.
Sol işaret parmağınızla kontrol ettiğiniz mavi renkli butondur.Mavi butona (push buton) basıp bıraktığınızda motorun arka tekerini yerden keserek motorun toplam ağırlığı sürücü dahil 560 kg’a kadar kaldırma gücüne sahiptir. İniş takımları siz motorun üzerindeyken dahi motoru havaya kaldırarak sehpaya almanızı sağlayacaktır. (Şayet yükünüz 560 kg’dan fazla ise ağırlığı otomatik algılayarak stop edecektir.) Mavi butona bir daha bastığınızda iniş takımlarını 40 derece geriye çekerek motorun sehpaya binmesini ve aynı zamanda yanlışlıkla sehpadan indirilirse motorun yıkılmaması için tasarlanmıştır. Sehpadayken isterseniz yeşil butona basarak iniş takımlarını yukarı toplaya bilirsiniz.Tekrar motoru sehpadan indirmek için, iniş takımları yukarda ise yeşil butona basarak iniş takımlarını yere kadar indirir, sonra mavi butona basarak park pozisyonuna getirir ve motoru ileri iterek sehpayı kaldırıp tekrar mavi butona basarak havada olan arka tekeri yavaş bir hızda yere indirip seyahate hazır hale getirebilirsiniz.
RED LIGHTWhen you turn on the ignition, the red light will flash fast for about 5 seconds indicating that the landing gear is not ready for operation. It turns off after 5 seconds, indicating that the motorcycle has started charging the landing gear. If the heavy traffic button is pressed, the red light will turn on continuously to indicate that it is in heavy traffic mode, and when 30 km/h is reached, the landing gear will automatically lift and the red light will turn off. In addition; when putting the motorcycle in park position or vise versa, the red light turns on continuously until the parking process is finished.YEŞİL IŞIKIf the green light is below 30 km/h, it stays on steadily. If the landing gear is down, the green light will flash rapidly to indicate that the landing gear is down. If the motorcycle is in the park position, the green light will flash intermittently.GREEN AND RED LIGHT COMBINATIONThis function can only be used by authorized agencies. Authorized agency keeps the red button pressed for 10 seconds and the green and red lights flash at the same time, indicating that it is in the setting mode. It connects via bluetooth from mobile phone by entering the password.( If there is no operation for 60 seconds, the program exits, each operation extends the time by 60 seconds.) It is used to adjust the landing gear up position, the ground position, and the landing gear position when parked. If the one of the landing gear touches the ground twice before the other one, it accelerates the late landing gear and automatically corrects it in 4-5 moves until it is equal to the ground, and automatically adjusts the speed of the landing gear.
When you get off the motorcycle, the landing gear will loosen as the suspensions will lift the bike up. In other words, your motorcycle will not tilt over, but it will shake. Thanks to the automatic tightening function; The landing gear detects the passenger getting off the motorcycle and makes the motorcycle stand more firmly. When the driver gets off, auto-tensioner function automatically detects it again and pushes the landing gear to the ground a little more, allows the motorcycle to more stable. It is designed to hold the motorcycle tightly when getting back on it. Also, You can make the morcycle more stable by pressing the red button.
